LUG Series
LUG-250A Socket

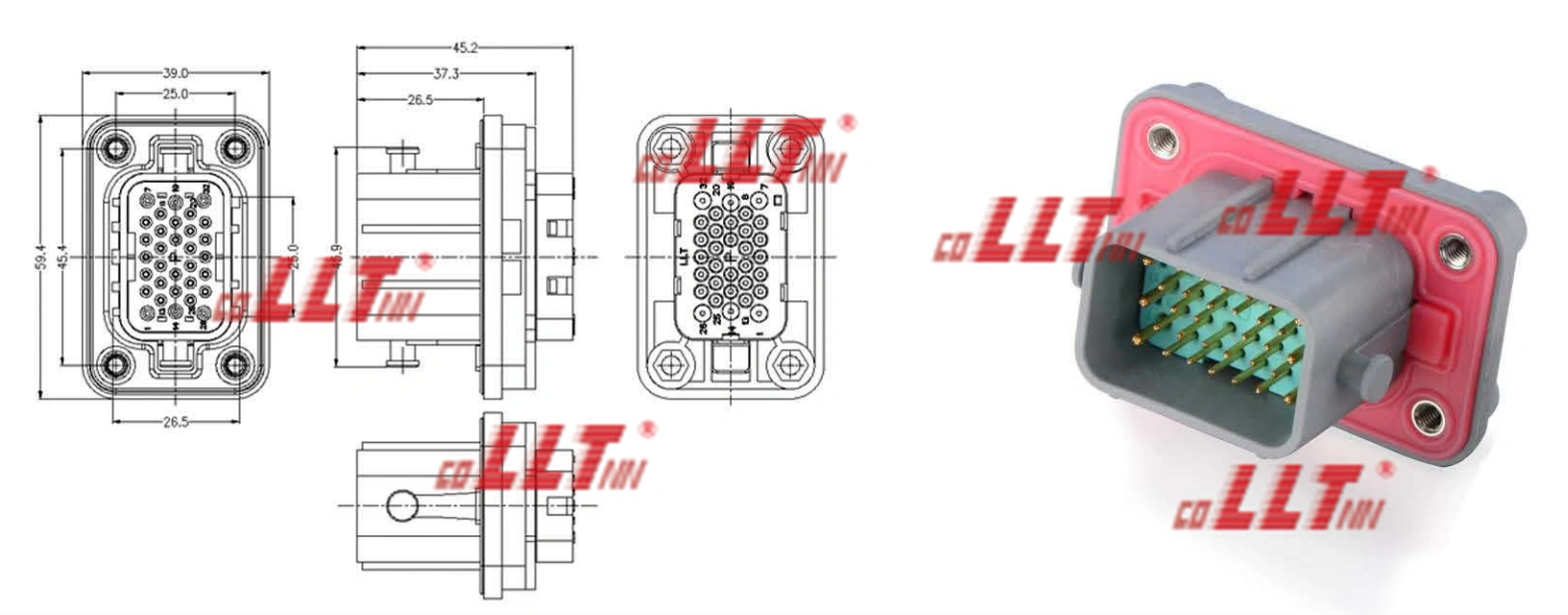

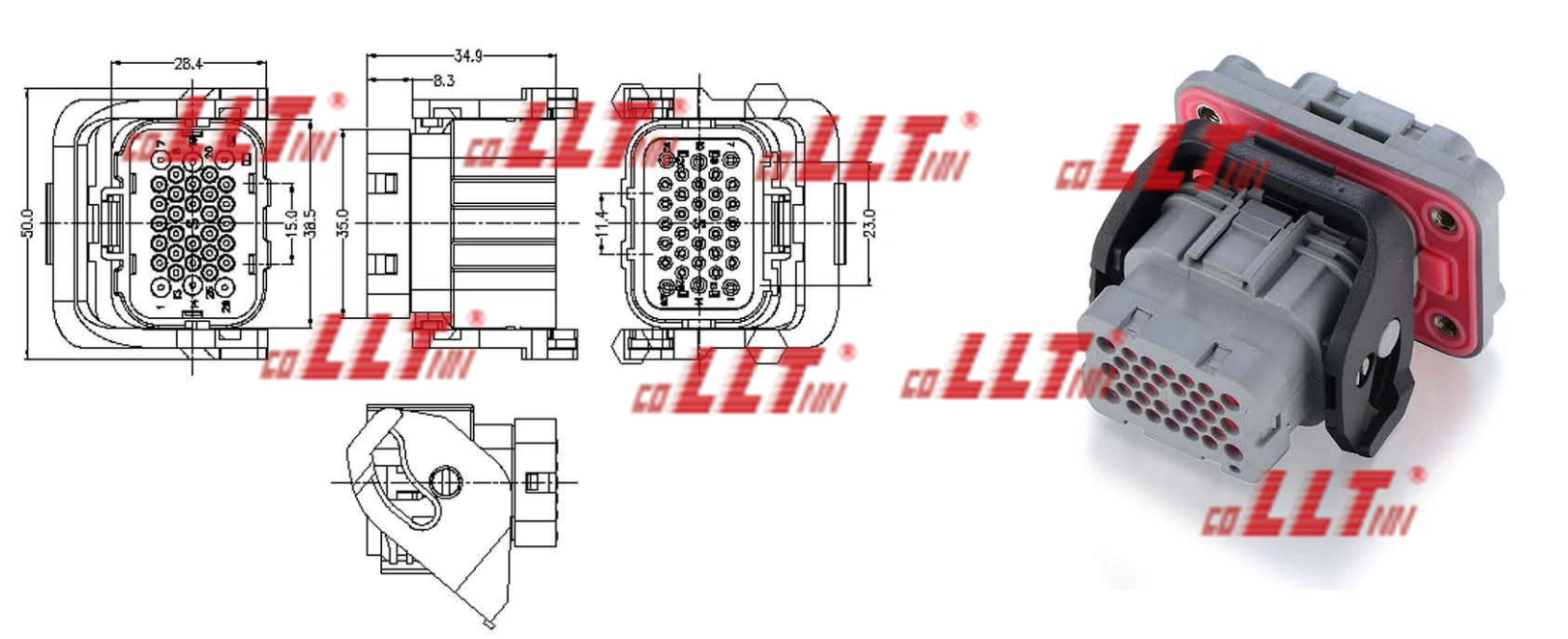

![Hardware Layout Diagram]()
High-Efficiency Photovoltaic Interconnection Connector - Superior Design for Enhanced System Reliability
Rated Voltage
600V AC
Rated Current
300A
Withstand Voltage
2500V AC
Contact Terminal Specifications
25 mm²/35 mm²/50 mm²/70 mm²
Insulation Resistance
≥5000
Contact Resistance - Current - Wire Gauge 1
0.2mΩ-80A-25mm²
Contact Resistance - Current - Wire Gauge 2
0.2mΩ-130A-35mm²
Contact Resistance - Current - Wire Gauge 3
0.2mΩ-180A-50mm²
Contact Resistance - Current - Wire Gauge 4
0.2mΩ-180A-50mm²
Mechanical Life
1000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67&IP2X
Color/Key Position
LC08 Series
LC08B-P32R Socket
![Hardware Layout Diagram]()
High-Efficiency Photovoltaic Interconnection Connector - Superior Design for Enhanced System Reliability
Rated Voltage
600V AC
Rated Current
300A
Withstand Voltage
2500V AC
Contact Terminal Specifications
25 mm²/35 mm²/50 mm²
Insulation Resistance
≥5000
Contact Terminal Specifications - Contact Resistance - Current - Wire Gauge 1
φ8.0mm-0.2mΩ-80A-25mm²
Contact Terminal Specifications - Contact Resistance - Current - Wire Gauge 2
φ8.0mm-0.2mΩ-130A-35mm²
Contact Terminal Specifications - Contact Resistance - Current - Wire Gauge 3
Mechanical Life
1000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67&IP2X
Color/Key Position
↔
LC18B-S32 Plug
![Hardware Layout Diagram]()
High-Efficiency Energy-Saving T-type Photovoltaic Connector - Designed and Optimized for Industrial Photovoltaic Systems
Rated Voltage
600V AC
Rated Current
300A
Withstand Voltage
2500V AC
Contact Terminal Specifications
25 mm²/35 mm²/50 mm²
Insulation Resistance
≥5000
Contact Terminal Specifications - Contact Resistance - Current - Wire Gauge 1
φ8.0mm-0.2mΩ-80A-25mm²
Contact Terminal Specifications - Contact Resistance - Current - Wire Gauge 2
φ8.0mm-0.2mΩ-130A-35mm²
Mechanical Life
1000
Operating Temperature
-40℃~+105℃
Waterproof Rating
IP67&IP2X
Hardware Layout
